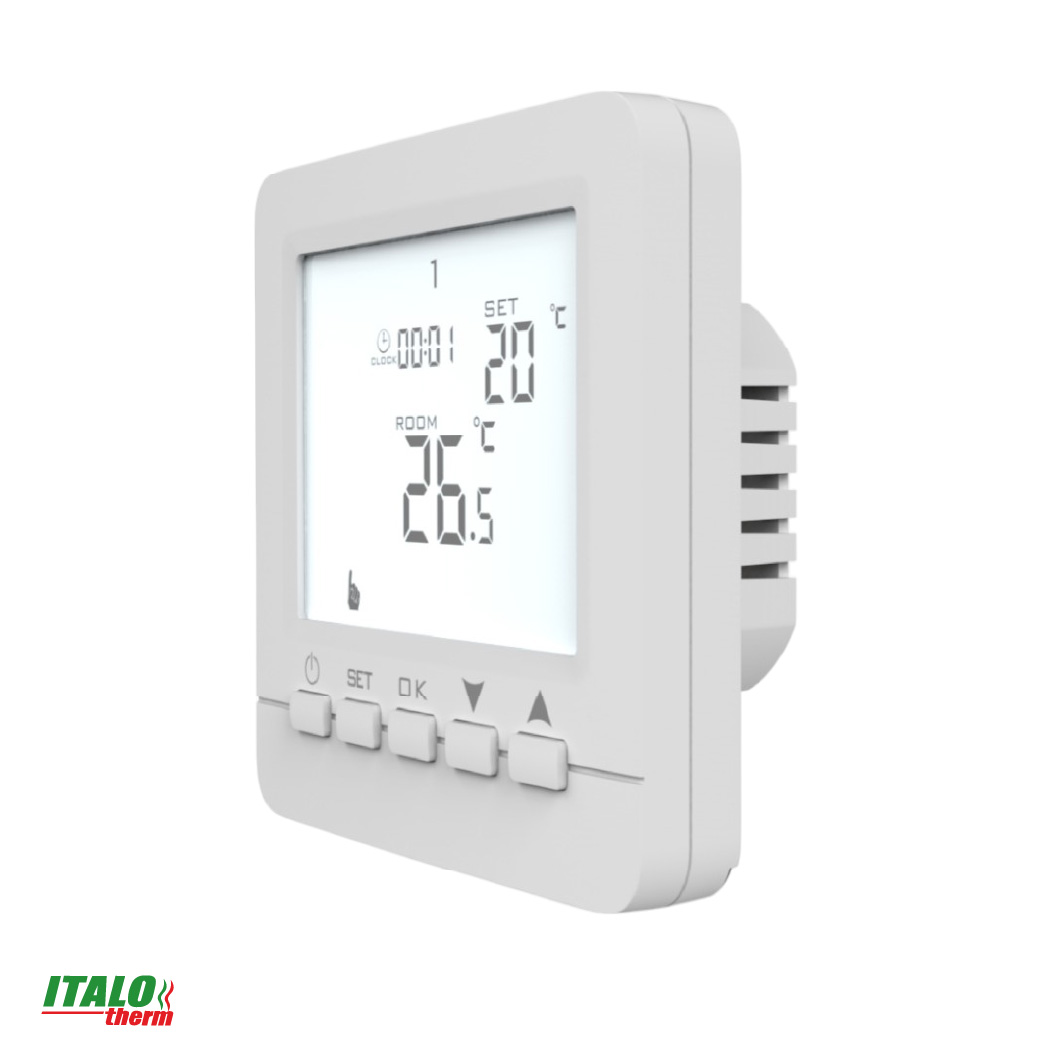

For el. heated floor HY02B05-2WE

ITALOTHERM room thermostats are designed for controlling electric underfloor heating systems and ensuring energy-efficient operation. They allow precise regulation of room or floor surface temperature according to a set schedule or the user's preferred mode. Equipped with a digital display, temperature sensor, and programmable control module, they provide user convenience and energy savings. The thermostat is compatible with various underfloor heating systems and is an excellent choice for both residential and office spaces.



TECHNICAL DATA
Product code HY02B05-2WE
Type for electric heated floor
Management type mechanical
Programming yes
Temperature regulation range, °С 5-35 (1-70)
Temperature accuracy, °С 0.5
Connection type wired
Built-in temperature sensor yes NLC (10k)
Outside temperature sensor yes NLC (10k)
Maximum current load, watts 3500
Maximum current load, A 16
Voltage, volts 90-240
Protection class IP20
Color white
Made in China
Sizes 86*86
Technical passport

*The appearance, color, and technical specifications of the products on the website may differ from the actual product.
